Product Development
Alloy Development
Product Overview

At PSW, alloy development is central to how we innovate and meet the evolving demands of modern manufacturing. Combining deep metallurgical expertise with advanced design tools, we develop and refine alloy chemistries that deliver high performance, processability, and consistency while supporting our low-carbon strategy. Whether optimizing existing grades or creating new solutions, we partner with customers to enable the next generation of advanced applications - Explore the alloy offerings below to learn more about our available low-carbon semi-solid solutions.

Magnesium Chips

Our magnesium alloy chips are purpose-engineered for thixomolding, enabling efficient semi-solid processing and consistent performance. When heated to a semi-solid state, they provide excellent flow for precise mold filling of complex geometries, while minimizing oxidation and material loss. The result is lightweight, high-precision components with improved process efficiency and material utilization.



Alloy YS (MPa​) TS (MPa​) Elongation (%)​
AZ91D 150-180 250-290 3-8
AM60B 130-155 240-280 11-18
AM50A 120-145 225-260 13-20



Rheo Alloy Series

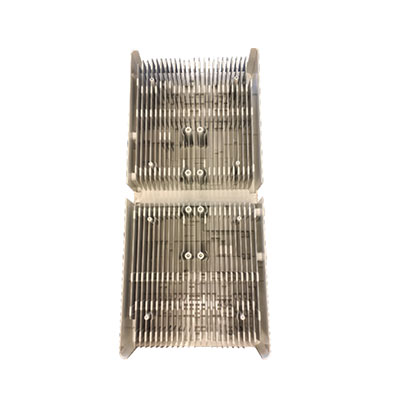

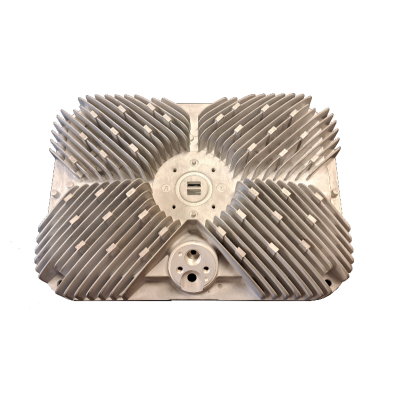

RheoCool

RheoCool is a low-carbon Al alloy designed for advanced thermal management and complex geometries. With high thermal conductivity and excellent fluidity at low silicon content, it enables superior mold filling while reducing porosity and extending die life—delivering high-quality, durable components for demanding applications.



Alloy Temper Chemistry YS (MPa​) TS (MPa​) Elongation (%)​
RheoCool f

AlSi2.5FeMg

90 200 165-175
o 4.5-6.5 150-190 180-198

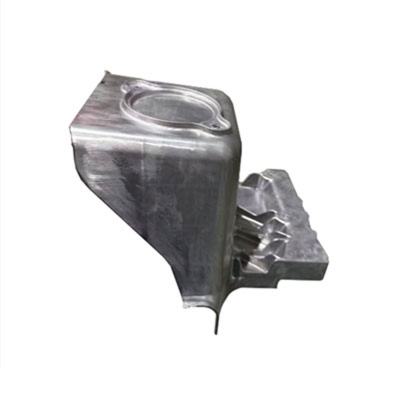

RheoGreen

Rheogreen is equivalent to your ADC12 Alloy, but with lower carbon footprint, and lower cost. It offers high thermal conductivity alongside excellent castability. Its strong mold filling capability ensures consistent production of high-quality components, making it a reliable solution for applications requiring both performance and sustainability.

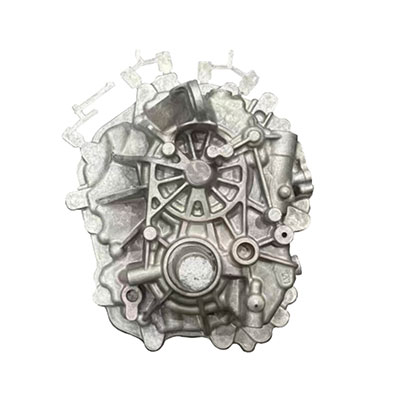

Castings made with PSW’s Mg Chips

Alloy Chemistry YS (MPa​) TS (MPa​) Elongation (%)​
RheoGreen AlSi2.5FeMg 135 250 2-5
VerdeAl™

VerdeAL™ is the result of years of research and development, combining our green metal production assets with advanced alloy design technology to create a product that meets the demands of both performance and planet.

VerdeALTM  has an ultra-low carbon footprint of less than 1.5 t CO2e per t Aluminum produced. Despite its ultra-low carbon footprint, VerdeAL delivers castability and mechanical performance fully comparable to conventional alloys, with notably enhanced consistency across batches.

Each batch of VerdeAL™ will be accompanied by a standard Certificate of Analysis issued by Trialco Aluminum (a PSW Group Company), now enhanced with verified carbon footprint and recycled content data supported by a trusted third-party platform.



Alloy Designation Mechanical Properties* Recycled
Content/%
Carbon
Footprint
(tCO2e/t)
Product Name Chemical Symbols Heat treatment Yield Strength Tensile Strength  Elongation
Mpa Mpa %
VerdeAl-AISi7 AISi7MnMg F 110-125 230-250 8-12 99.0 0.96
VerdeAl-AISi10 AISi10MnMg T6 110-150 230-260 8-12 98.5 0.99
VerdeAl-A356 AISi7Mg T6 170-190 270-290 9-13 99.5 0.93
VerdeAl-A380 AISi9Cu3 F 150-170 310-340 2-5 99.0 0.96

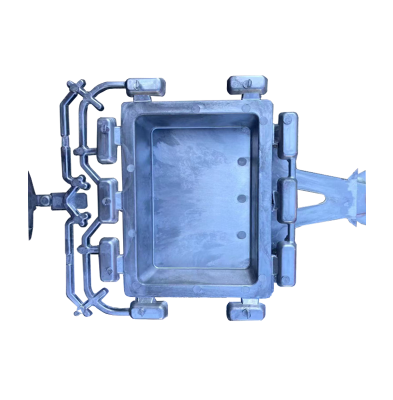

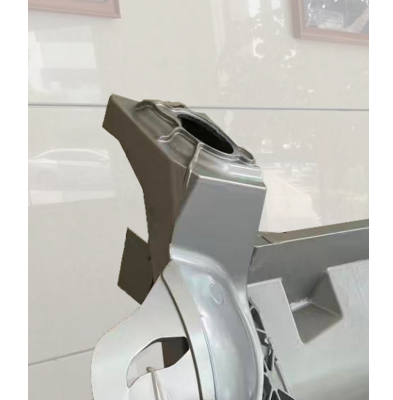

VerdeAl™– NH

On top of the ultra-low carbon footprint feature, PSW's VerdeAl™ – NH alloys are heat-treatment free. They are engineered to achieve required mechanical properties directly during casting or forming, eliminating the need for additional thermal processing. This enables reduced energy consumption, shorter production cycles, and lower overall costs while maintaining consistent and reliable material performance.



Alloy Temper Chemistry YS (MPa​) TS (MPa​) Elongation (%)​ Carbon Footprint (tCO2e/t)​
Heat-treatment Free Alloys
Primary Alloy Solutions F AlSi7MnMg 110-130 250-270 12-15 4-6
VerdeAL™-NH F AlSi8MnMgX 140-150 280-290 10-14 <1
VerdeAL™-NH F AlSi8MgX 135-155 270-290 11-14 <1
Heat-treatment Alloys
AU 2 T6 AlSi10MgMn 120 230 10 4-6
AU 5 T5 AlSi7MgMn 130 240 9 4-6
Contact Us

Beyond the standard alloy products,we also offer custom alloys produced with ultra-low carbon standard.

Get in touch to explore how we can tailor solutions to your performance and sustainability goals.
